Removal

Remove Engine Room Parts
Click on the underlined sentence.

Drive belt
Alternator

  3. Drive belt removal

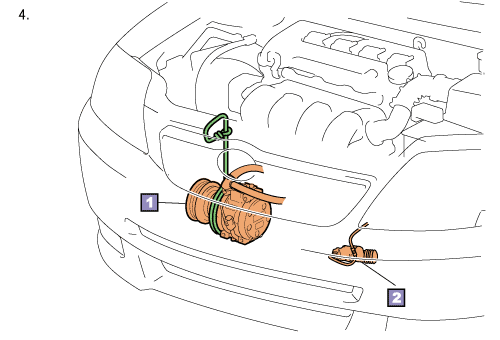

4. Remove A/C compressor and clutch release cylinder
  Tie down the A/C compressor and clutch release cylinder with a cord, etc., to keep them out of the way when removing the engine and transaxle.
NOTICE:
Be careful not to deform the tube when removing the A/C compressor and clutch release cylinder.

(16)
