Removal

Remove Engine Room Parts
Click on the underlined sentence.

Drive belt
Alternator

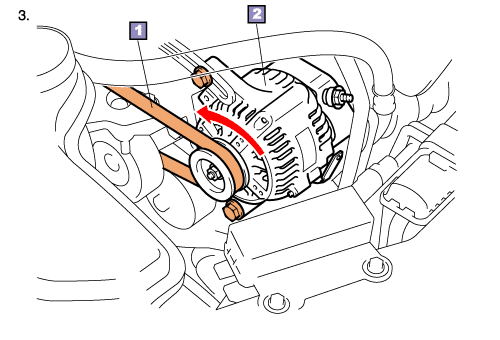

  3. Drive belt removal
  Loosen the alternator mounting bolts and remove the belt.
NOTICE:
Be careful not to pull the drive belt when moving the alternator.

4. Remove A/C compressor and clutch release cylinder

(16)
