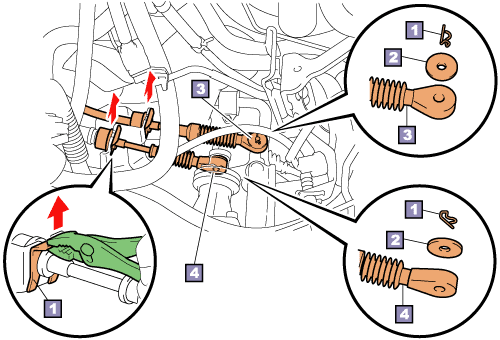

Clip |
|
|
Washer |
|
|
Select cable |
|
|
Shift cable |
|
|
|
| 5. |
Disconnect shift and select cables
|
|
Remove the clips and washers and then disconnect
the shift and select cables from the transaxle.
|
| |
|
NOTICE:
Do not exert an excessive force on, or bend, the shift and
select cables.
|
| |
|
HINT:
|
|
•
|
Do not let the clip fly away.
|
|
|
Use a cord to tie down the disconnected cables
to keep them out of the way when removing the transaxle.
|
|
•
|
Place tags on the disconnected shift and select
cables to identify them for reassembly.
|
|
