Conventional Starter.

Other Constructions of Starter
Click on the appropriate button in the illustration.
Click on the underlined sentence.

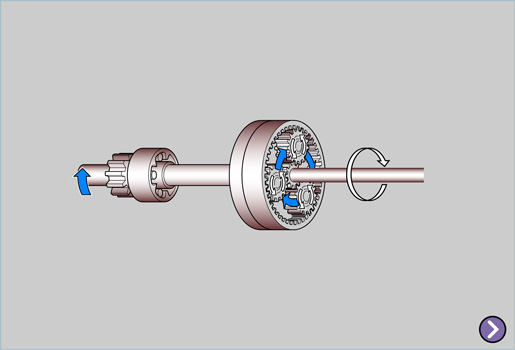

3. Speed reduction mechanism
(1) Construction
(2) Characteristics
(3) Operation

REFERENCE:
Damping Device:

If the ring gear (engine) is seized or provides excessive resistance when attempting to start, the clutch plate engaged with the internal gear slips, allowing the internal gear to rotate and excess torque is absorbed. This prevents damage to the planetary components.

(25/2)
