Reference
|
PS (Planetary reduction-Segment conductor motor) Starter
|
|
|
| 1. |
Field coil
|

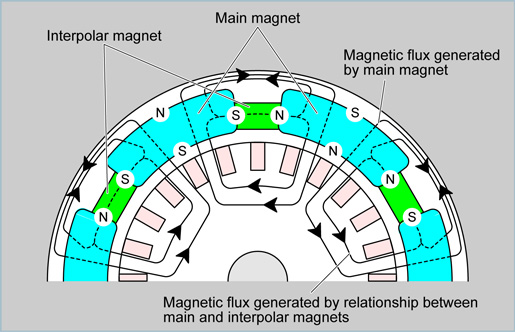

Instead of the field coils used in a conventional starter, the PS (Planetary reduction-Segment conductor motor) starter uses two types of permanent magnets: main magnets and interpolar magnets.
The main and interpolar magnets are arranged alternately inside the yoke. This allows the magnetic flux generated between the main and interpolar magnets to be added to the magnetic flux generated by the main magnets. In addition to increasing the amount of magnetic flux, this construction shortens the overall length of the yoke. |
|
(26)
|
|
