Planetary type
|
| 1. |

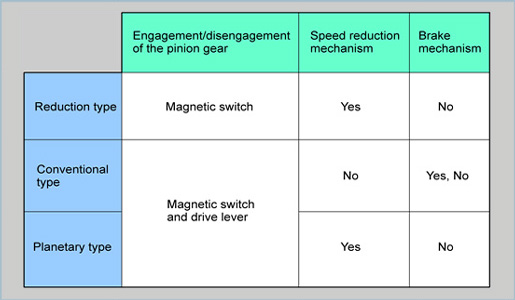

Construction differences between the planetary type, the reduction type and the conventional type (figure on the left)
|
|
| 2. |
Engagement/disengagement of the pinion gear
|
| (1) |

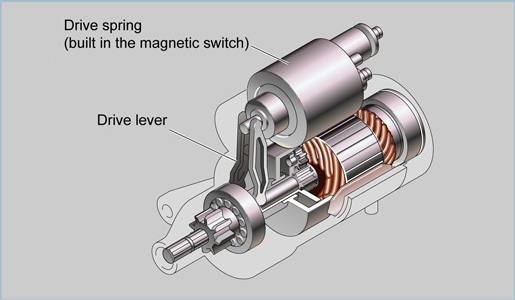

Drive spring
|
| The drive spring is built into the magnetic switch. The drive spring operates in a similar way in the reduction type and the conventional type starters. |
|
HINT:
The magnetic switch and the drive lever operate in a similar way as the conventional type starter.
|
