Inspection

Replace Brush
Click on the underlined sentence.

1. Replace brush

(1) Cut the brush lead wire on the connecting position at the starter yoke side.

(2) Reshape the soldering surface of the starter yoke with a file or sandpaper.

(3) Install a new brush with plate on the starter yoke, and crimp in place.

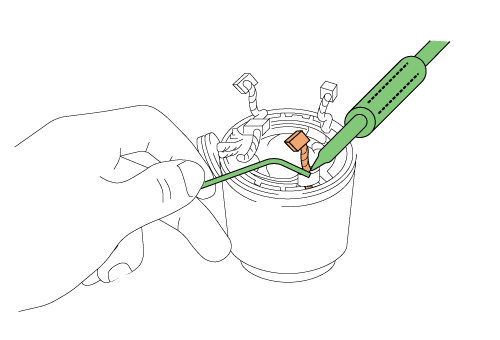

  (4) Solder the new brush to the attached area.

HINT:
Limit the amount of solder to ensure that the solder will not be attached to other than the target area.
