Inspection

Replace Brush
Click on the underlined sentence.

Brush
Plate
1. Replace brush

(1) Cut the brush lead wire at the connecting position to the starter yoke side.

(2) Reshape the soldering surface of the starter yoke with a file or sandpaper.

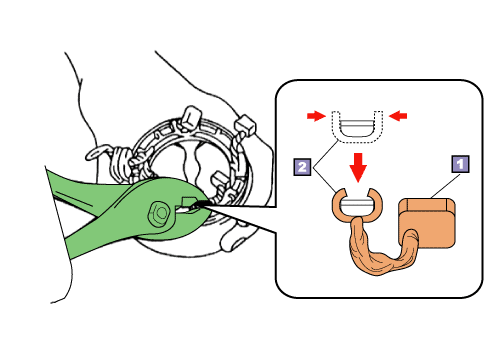

  (3) Install a new brush with plate on the starter yoke, and crimp in place.

(4) Solder the new brush to the attached area.


(46/3)
