Components and Construction

Components

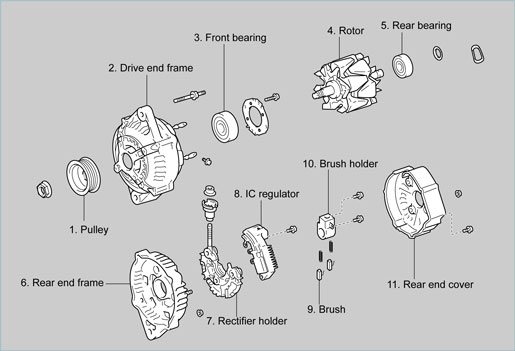

Click on the underlined sentence.		 The Alternator consists of the following components.
1. Pulley
REFERENCE:
Pulley with one-way clutch
2. Drive end frame, rear end frame
3. Front bearing
4. Rotor
5. Rear bearing
6. Rear end frame
7. Rectifier holder
8. IC regulator
9. Brush
10. Brush holder
11. Rear end cover
