Disassembly

Remove Alternator Pulley
Click on the underlined sentence.

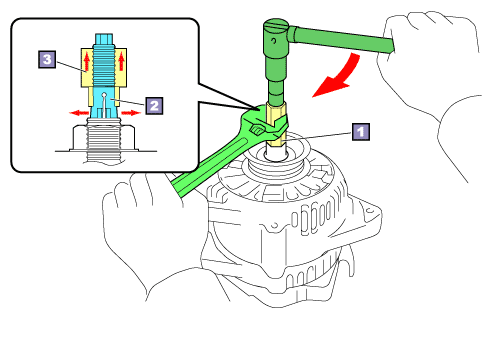

SST1 (Alternator rotor shaft wrench)
SST1-A (Alternator rotor shaft wrench-A)
SST1-B (Alternator rotor shaft wrench-B)
(3) Turn SST1-A clockwise to loosen the pulley lock nut.
HINT:
With SST2 (pulley lock nut) held, turning SST1-A clockwise relatively loosens the pulley lock nut.

  (4) Remove the alternator from SST2 and then while holding SST1-B, turn SST1-A clockwise to loosen itself, and remove SST1-A and SST1-B from the alternator.
Remove the pulley nut and alternator pulley.

REFERENCE:
•
 For pulleys with one-way clutches

(34/1)
