Disassembly

Remove Alternator Rotor Assembly
Click on the underlined sentence.

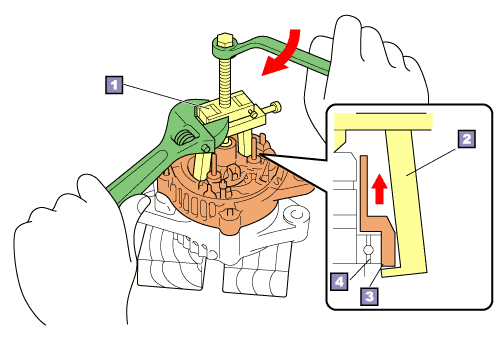

SST (Injection pump spline shaft puller)
Claw of SST
End frame
Rotor bearing
Since the rotor bearing is pressed into the end frame, it needs to be removed using the SST.

  1. Remove rear end frame
    Correctly locate the claws of the SST when removing the rear end frame.

2. Remove alternator rotor assembly
    Remove the rotor from the drive end frame bearing by tapping the rotor shaft with a plastic hammer.
