Disassembly

For pulleys with one-way clutches
Click on the underlined sentence.
SST (A) (Alternator rotor shaft wrench)
SST (B) (Alternator pulley wrench)
For pulley with one-way clutches, hold the shaft and turn the pulley to remove the pulley.

1. Remove alternator pulley

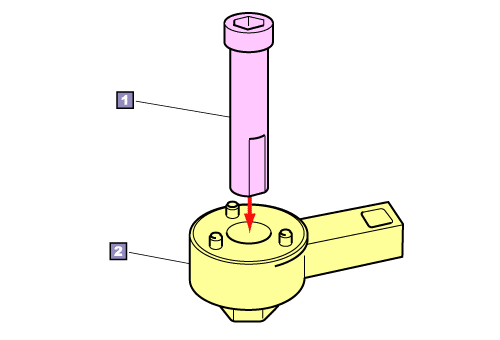

  (1) Set SST (A) and SST (B).

(2) Remove the cap, insert SST (A) into the shaft and fit each of the three tabs of SST (B) into each of the three holes of the alternator pulley.

(3) Hold the tip (chamfer part) of SST (A) in a vice.

(4) Turn the pulley with SST (B) to loosen the pulley.
