Disassembly
Remove Alternator Pulley
Click on the underlined sentence.

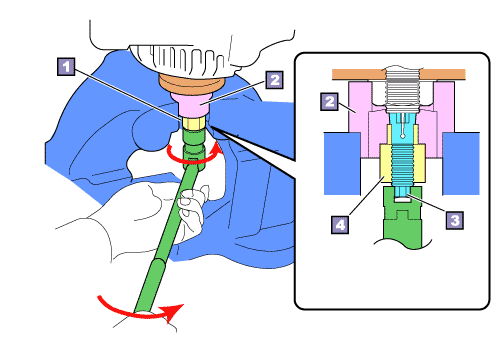

SST1 (Alternator rotor shaft wrench)
SST2 (Alternator pulley set nut wrench)
SST1-A (Alternator rotor shaft wrench-A)
SST1-B (Alternator rotor shaft wrench-B)
(3)
Turn SST1-A clockwise to loosen the pulley lock nut.
HINT:
With SST2 (pulley lock nut) held, turning SST1-A clockwise relatively loosens the pulley lock nut.
(4)
Remove the alternator from SST2 and then while holding SST1-B, turn SST1-A clockwise to loosen itself, and remove SST1-A and SST1-B from the alternator.
Remove the pulley nut and alternator pulley.
REFERENCE:
•
For pulleys with one-way clutches
(34)
