Operation and Function

Switching Dampers
Click on the underlined sentence.
1. Switching dampers
2. Air inlet switching function
3. Temperature control function
4. Outlet switching function
Moving the dampers switches the outlet. There are five modes.
FACE:
BI-LEVEL:
FOOT:
DEF:

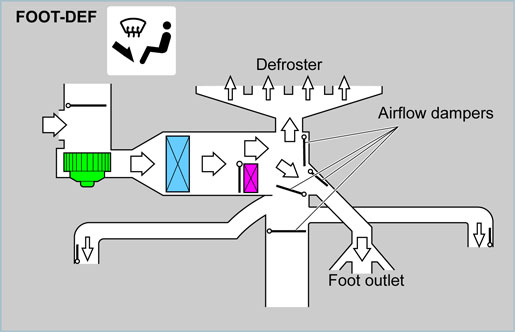

FOOT-DEF: Directs air flow to the feet and removes mist on the windshield and front windows.

(9/3)
