Operation and Function

Switching Dampers
Click on the underlined sentence.
1. Switching dampers
2. Air inlet switching function

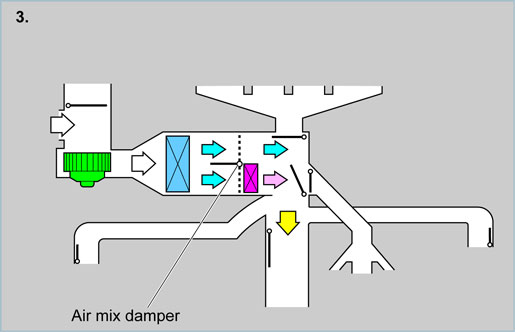

3. Temperature control function
This controls the temperature, changing the ratio of the cold air that has passed through the evaporator to the warm air that has passed through the heater core by moving the air mix damper.
4. Outlet switching function
