Reinstall Transmission 05d

PRO TECHNICIAN

Reassembly

Install Bearing and Oil Seal

Click on the underlined sentence.

	Hydraulic press
	SST (Handle and replacer)
	Bearing
	Bearing outer race and shim
	Bearing outer race

	Shim

1.	Install bearing, outer race and shim
	Use SST and hydraulic press to install the following parts.
	(1)	Install the output shaft front bearing.

	(2)	Install the input shaft front bearing.

	(3)	Install the differential case front bearing, outer race and shim.

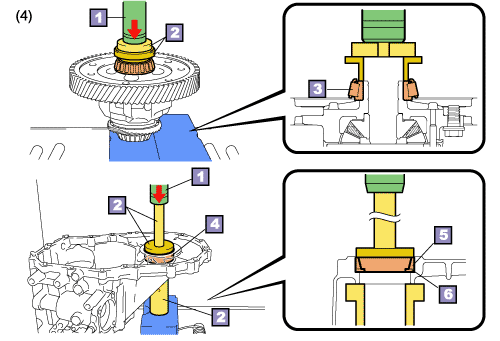

	(4)	Install the differential case rear bearing, outer race and shim.

NOTICE:
Bring SST into contact with inner race of bearing.

(5)
