Reassembly
Install Bearing and Oil Seal
Click on the underlined sentence.
Hydraulic press
SST (Handle and replacer)
Bearing
1.
Install bearing, outer race and shim
Use SST and hydraulic press to install the following parts.

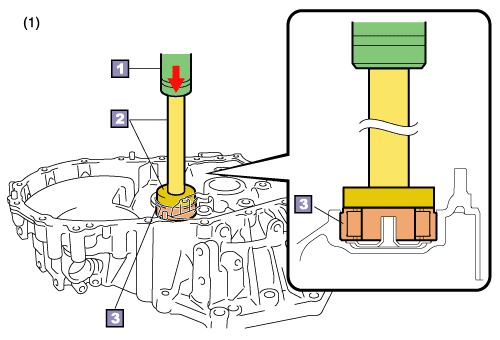

(1)
Install the output shaft front bearing.
(2)
Install the input shaft front bearing.
(3)
Install the differential case front bearing, outer race and shim.
(4)
Install the differential case rear bearing, outer race and shim.
NOTICE:
Bring SST into contact with inner race of bearing.
(5)
