Reinstall Transmission 06

PRO TECHNICIAN

Reassembly

Install Bearing and Oil Seal

Click on the underlined sentence.

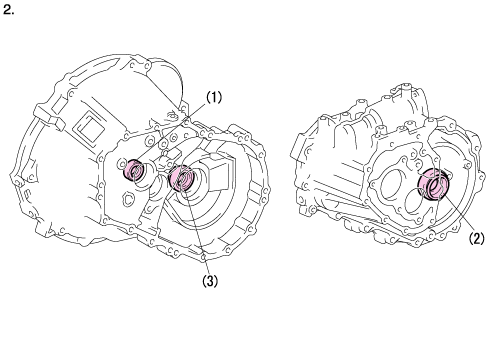

2.	Install oil seal
	Use SST and hammer to install the following oil seals:
	(1)	Install the front transaxle case oil seal.

	(2)	Install the transmission case oil seal.

	(3)	Install the transaxle case oil seal.
HINT:
Install the lip of oil seal facing transmission case.

(6)
