Reassembly

Install Clutch Hub and Gears on Output Shaft
Click on the underlined sentence.

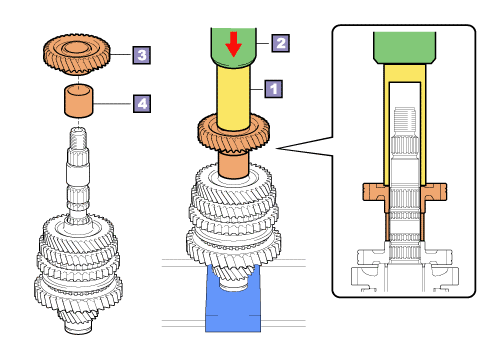

SST (Tilt handle bearing replacer)
Hydraulic press
4th driven gear
Output gear spacer
Install gears
1. Carefully note the positioning and direction of each part as you install them on the shaft.
NOTICE:
•
Rotate the gears to align the shifting key with the groove on the synchronizer ring.
•
Coat sliding portion of the gears with gear oil before reassembly.

2. Set and attach SST. Then use the hydraulic press to press in the clutch hub, gears and bearing.

3. After pressing in the parts, verify that each gear rotates smoothly.
•
 1st gear and clutch hub No.1
Reassemble snap rings
•
 Install 3rd Driven Gear
•
 Install 4th Driven Gear
•
 Install Output Shaft Bearing
