Reassembly

Reassemble Clutch Hub
Click on the underlined sentence.

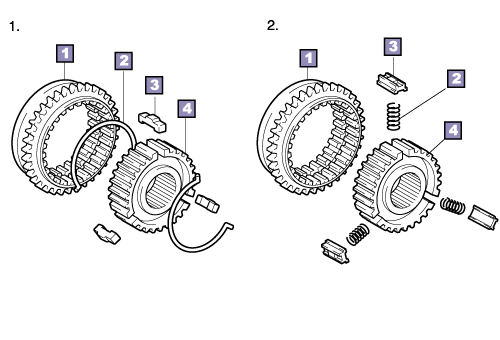

Hub sleeve
Key spring
Shifting key
Clutch hub

Reassemble the hub sleeve and clutch hub while carefully verifying their proper positioning. Then attach the shifting keys and key springs to the clutch hub.
HINT:
•
On a C-type transaxle, the reverse gear and hub sleeve are combined as one unit.
•
Coat sliding porting of the hub sleeve with gear oil before reassembly.

1.
HINT:
•
Hook the claw of the key spring to the shifting key.
•
Do not align the opening of the key springs.

2.
HINT:
Compress the key spring with a flat-head screwdriver and insert the shifting key.
