Reassembly

Install Clutch Hub and Gears on Output Shaft
Click on the underlined sentence.
SST (Transmission & transfer bearing replacer)
Hydraulic press
Spacer
Needle roller bearing (2nd)
Synchronizer ring (2nd)
2nd gear
3rd driven gear
Shifting key

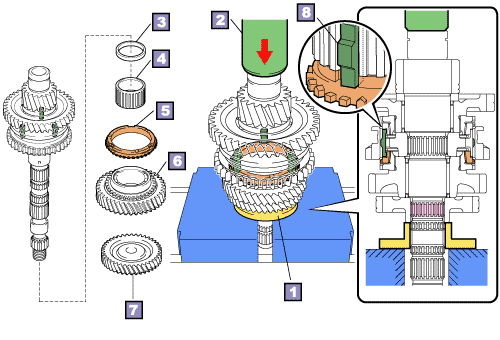

Install gears
1. Carefully note the positioning and direction of each part as you install them on the shaft.
NOTICE:
•
Rotate the gears to align the shifting key with the groove on the synchronizer ring.
•
Coat sliding portion of the gears with gear oil before reassembly.

2. Set and attach SST. Then use the hydraulic press to press in the clutch hub, gears and bearing.

3. After pressing in the parts, verify that each gear rotates smoothly.
•
