Disassembly

Remove Clutch Hub and Gears from Output Shaft
Click on the underlined sentence.
1st gear
Snap ring
Clutch hub assembly
  1. Remove 4th driven gear

2. Remove 2nd gear and 3rd driven gear

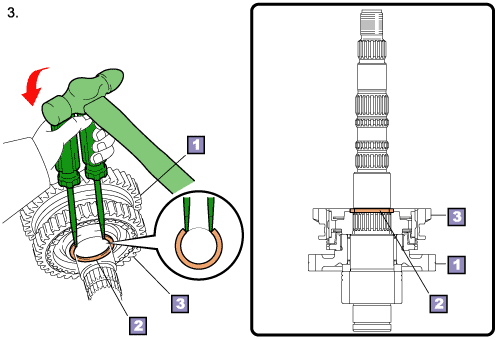

3. Remove snap ring
Use two penetration screwdrivers and a hammer to remove the snap ring.

4. Remove 1st gear

NOTICE:
Removing the gears will also disconnect the output shaft. Make sure to support the output shaft with your hands when removing the gears to prevent the shaft from falling.

(5)
