Disassembly
Disassemble Clutch Hub
Click on the underlined sentence.
Clutch hub assembly
Clutch hub
Hub sleeve
Shifting key
Key spring
1.

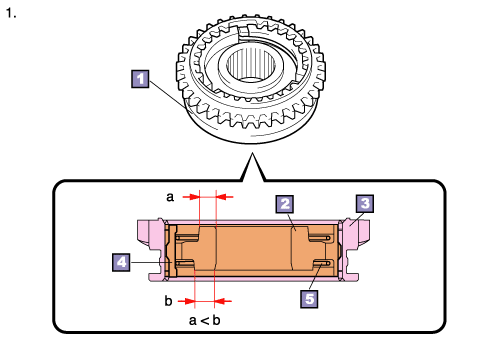

Verify hub sleeve and clutch hub positioning
The hub sleeve and clutch hub both have specific positional settings. Make sure to note these settings before removing the parts.
2.
Remove hub sleeve
(6)
