Disassembly

Remove Clutch Hub and Gears from Output Shaft

Click on the underlined sentence.

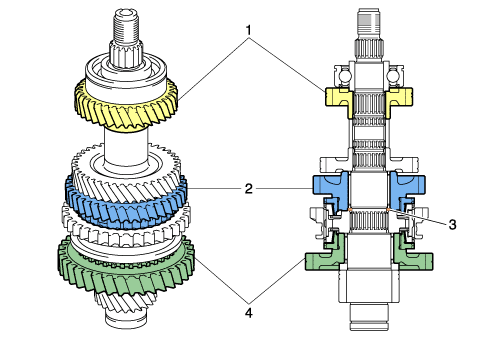

The driven gear and clutch hub are both pressed into the output shaft and locked with a snap ring.
The spacer, needle roller bearing, synchronizer ring and the different gears are fitted between these press-fitted parts.
Use SST and hydraulic press to remove the following parts:

(4)
