Reassembly

Adjust Valve Clearance
Click on the underlined sentence.

Micrometer

1. Measure valve clearance

2. Remove out-of-spec shims (lifters)

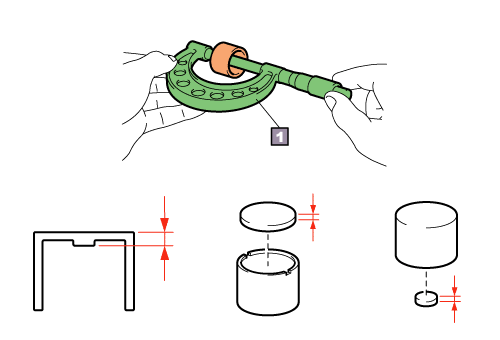

  3. Measure thicknesses of shims (lifters).
  Using a micrometer, measure the thickness of each shim (lifter).

4. Select shim (lifter)

  5. Install selected shim (lifter)

  6. Measure valve clearance again
