Reassembly

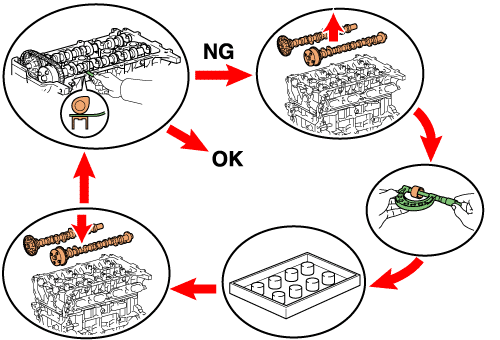

Adjust Valve Clearance
Click on the underlined sentence.

  1. Measure valve clearance

2. Remove out-of-spec shims (lifters)

3. Measure thicknesses of shims (lifters)

4. Select shim (lifter)

  5. Install selected shim (lifter)

  6. Measure valve clearance again
