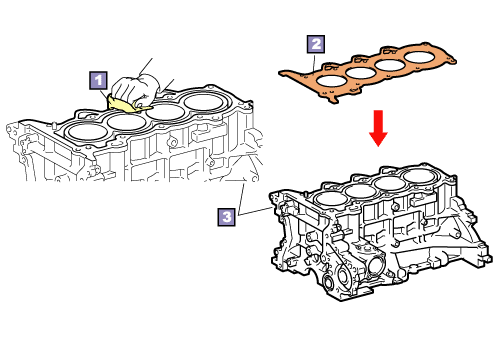

Cloth |
 |
Cylinder gasket |
 |
Cylinder block |
|
|
|
| 1. |
Install cylinder head gasket |
| (1) |
Before installing the gasket, clean the bottom of the cylinder
head and the top of the cylinder block. |
| (2) |
Clean the bolt holes and remove any oil or moisture. |
| NOTICE: |
| If the bolts are mounted with oil
or moisture still in the bolt holes, the block may be damaged by liquid compression. |
| |
| (3) |
Orient the gasket in the correct direction, and install it
on the cylinder block. |
| NOTICE: |
| If the gasket is improperly oriented,
the oil holes and water jacket could become covered, which could cause oil and
water to leak. |
| |
|
