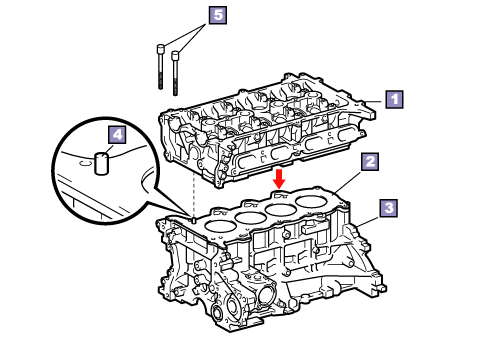

Cylinder head |
|
|
Cylinder head gasket |
|
|
Cylinder block |
|
|
Knock pin |
 |
Cylinder head bolt |
|
|
|
| 1. |
Align the cylinder head to the knock
pins of the head and block, and place the cylinder head on the block. |
| NOTICE: |
| When placing the cylinder head on
the block, be careful not to move the head, or the bottom of the cylinder head
could be damaged by knock pins. |
| |
| 2. |
Tighten the cylinder head bolts in the correct sequence and torque as per the Repair Manual. |
| |
|
|
