Reassembly

Install Oil Pan
Click on the underlined sentence.

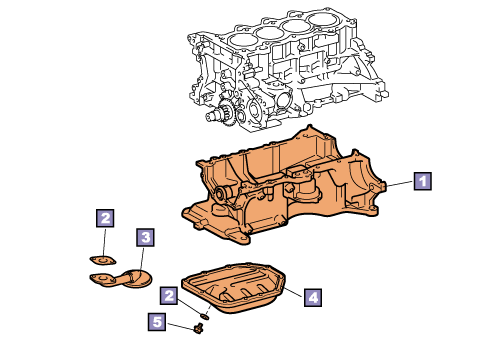

Oil pan No.1
Gasket
Oil strainer
Oil pan No.2
Drain plug
The oil pan is installed using seal packing.
The following instructions and procedures are for applying and handling the seal packing.
For information regarding seal packing application locations and application amount (thickness), refer to the Repair Manual.

1. Clean coated surface

  2. Apply seal packing

  3. Install oil pan
