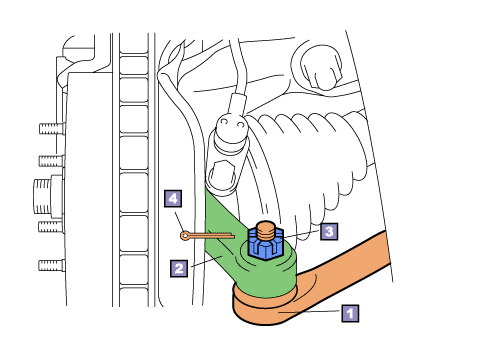

Tie rod end |
|
|
Steering knuckle |
|
|
Castle nut |
 |
Cotter pin |
|
|
|
|
4.
|
Install tie rod end
|
| (1) |
Insert the tie rod end into the steering knuckle.
|
|
|
| (2) |
Tighten the castle nut to the required torque and fix the nut using a cotter pin. |
|
NOTICE:
Cotter pins cannot be reused.
Be sure to use a new cotter pin.
|
|
