Inspection
Inspect Camshaft
Click on the underlined sentence.
Micrometer
Inspect the following camshaft areas:
1.
Check shaft runout
2.

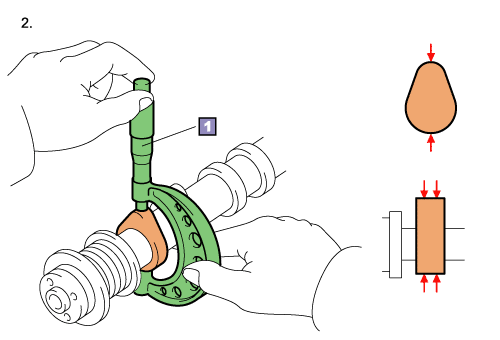

Check cam lobe height
Use a micrometer to measure the highest point on the cam lobe.
3.
Check journal diameter
HINT:
•
A worn cam lobe generates loud hitting sounds and prevents the valve from being opened and closed with the proper timing.
•
If the value exceeds the specified value, replace the camshaft.
