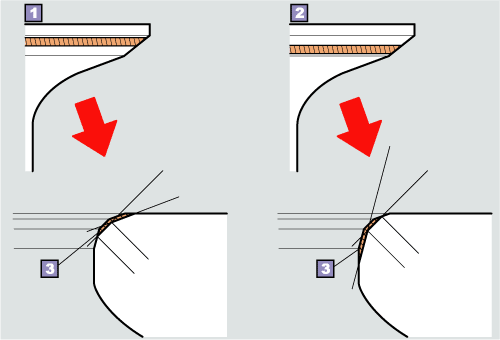

Seating too high |
 |
Seating too low |
 |
Valve seat cut position |
|
|
|
| 1. |
Repair valve seat |
| (1) |
The seat cutter angle can be changed by different
valve contact positions. |
| (2) |
Correct the valve contact width to the specified
value. |
| |
| NOTICE: |
| • |
When stopping the cutter, stop it at a different position each time. |
| • |
Do not rotate the cutter in reverse while it remains pressed against the seat. |
| • |
Check the valve contact position and contact width while cutting the seat. |
| • |
In order not to cut a groove or step in the surface, gradually reduce force as cutting nears completion |
|
