Reassembly
Install Piston
Click on the underlined sentence.
Install Piston
1.

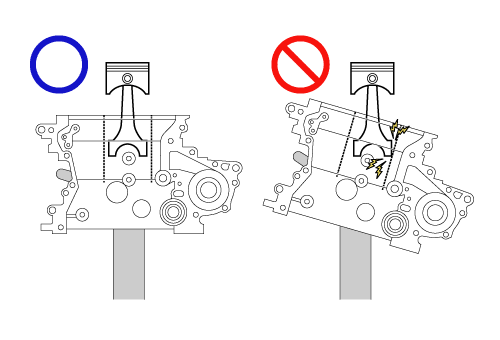

Set the cylinder block so that the head mounting surface is facing straight up.
NOTICE:
•
If the block is set sideways or slanted, insertion of the piston could cause the connecting rod to damage the inner walls of the cylinder.
•
If the connecting rod has bolts, cover each bolt with a plastic tube so that the inner walls of the cylinder are not damaged.
