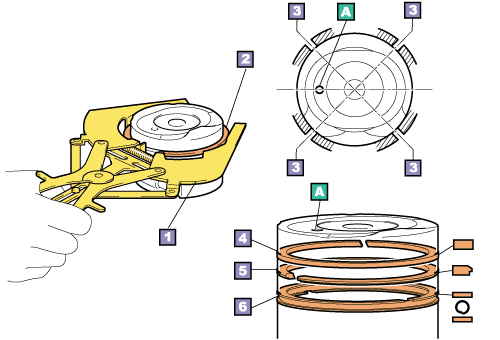

Piston ring expander |
|
|
Piston ring |
|
|
Piston ring end gaps |
| |
|
 |
Front mark |
|
|
|
No.1 piston ring |
|
|
No.2 piston ring |
|
|
Oil ring |
|
|
|
| 2. |
Install piston ring |
| (1) |
Install the oil ring by hand. |
| (2) |
Place the piston ring evenly on the piston ring
expander seat and install the piston rings in the order of No.2,
No.1. |
| |
| NOTICE: |
| The piston ring could
be damaged if spread too much or twisted. |
| |
| HINT: |
| • |
Do not place all of the piston ring end gaps in
a row. Much compressed gas leaks through the end gap. |
| • |
Refer to the Repair Manual to confirm the positions
of the piston ring end gaps. |
|
