Reassembly
Install Piston
Click on the underlined sentence.

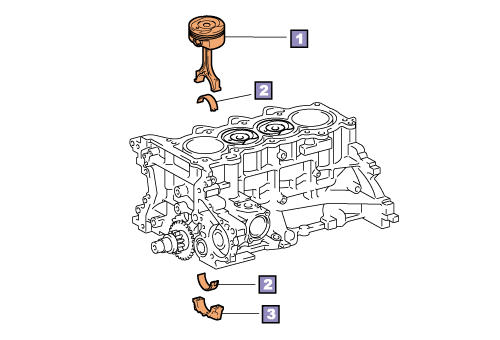

Piston with connecting rod
Bearing
Bearing cap
Install Piston
1.
Set the cylinder block so that the head mounting surface is facing straight up.
NOTICE:
•
If the block is set sideways or slanted, insertion of the piston could cause the connecting rod to damage the inner walls of the cylinder.
•
If the connecting rod has bolts, cover each bolt with a plastic tube so that the inner walls of the cylinder are not damaged.
