Disassembly

Inspect Clearance
Click on the underlined sentence.

Dial gauge

Inspect the following clearances before disassembling the cylinder block:
1. Connecting rod thrust clearance

2. Connecting rod oil clearance

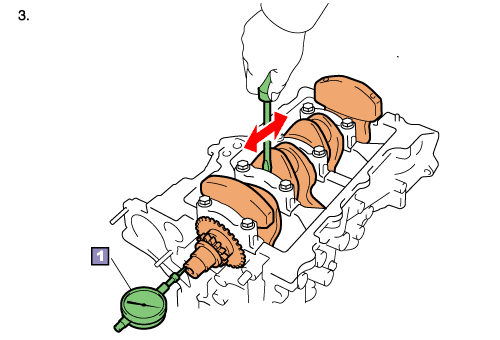

3. Crankshaft thrust clearance
    Use a dial gauge and flat-head screwdriver to measure the thrust clearance.

HINT:
Inspect the crankshaft thrust clearance after removing the piston with connecting rod.

Back to Components page
(3)
