Disassembly
Inspect Clearance
Click on the underlined sentence.

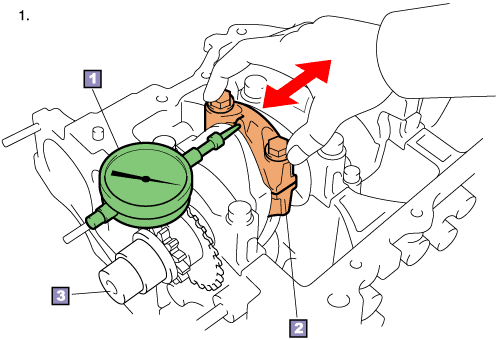

Dial gauge
Connecting rod
Crankshaft
Inspect the following clearances before disassembling the cylinder block:
1.
Connecting rod thrust clearance
Use a dial gauge to measure the thrust clearance.
2.
Connecting rod oil clearance
3.
Crankshaft thrust clearance
HINT:
Inspect the crankshaft thrust clearance after removing the piston with connecting rod.
