PRO TECHNICIAN
Disassembly
Remove Piston
Click on the underlined sentence.

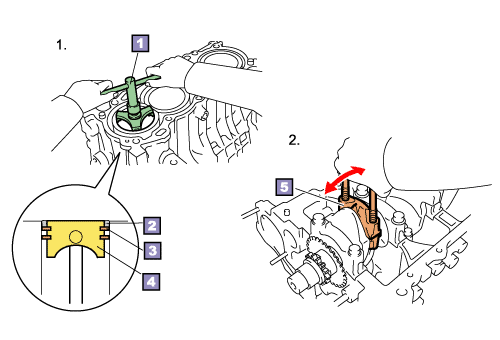

Ridge remover
Carbon
Piston ring
Piston
Bearing cap
1.
Remove carbon from inner walls of cylinder
HINT:
If carbon accumulates, the piston ring will catch on the carbon and damage the ring when it is removed.
2.
Remove connecting rod bearing cap
(4)
