Testing.
|
Check Pinion Gear Clearance
|
|
|
| Check the clearence of the extended pinion. |
| |
| 1. |
Check pinion gear clearance |
| |
| (1) |

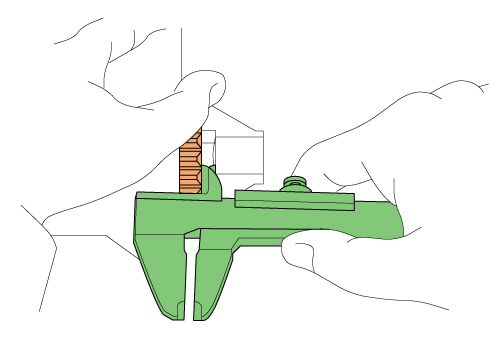

During the hold-in test, measure the clearance between the pinion gear end and stop collar. |
| |
| HINT: |
| If the clearance is outside of the specified range, replace the magnet starter switch assembly. |
|
|
(59)
|
|
