Inspection
Inspect Magnet Starter Switch Assembly
Click on the underlined sentence.
Terminal 50
Terminal C
Pull-in coil
Hold-in coil
Switch body
Terminal 30
Continuity
2.
Inspect magnet starter switch continuity
Inspect the following items with an electrical tester.
(1)
Continuity between terminal 50 and terminal C (Continuity check in the pull-in coil).
(2)

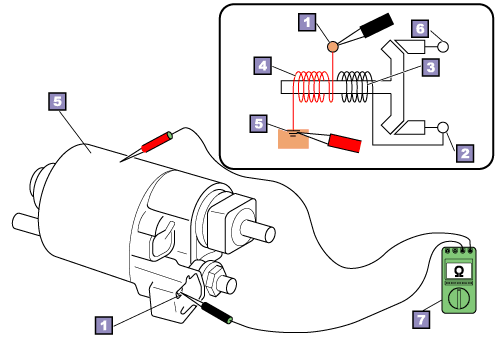

Continuity between terminal 50 and the switch body (Continuity check in the hold-in coil).
HINT:
•
The hold-in coil connects terminal 50 and switch body. If the hold-in coil is normal, there is continuity between the terminal and switch body.
•
When the hold-in coil is open, the plunger is pulled in, but is not held, so the pinion gear repeatedly engages and disengages.
