Disassembly.
Remove Starter Clutch
Click on the underlined sentence.
Snap ring
Stop collar
1.
Remove starter clutch
(1)
Remove the starter armature assembly from the starter yoke and hold the armature in a vise wedged between aluminium plates or a cloth.
(2)

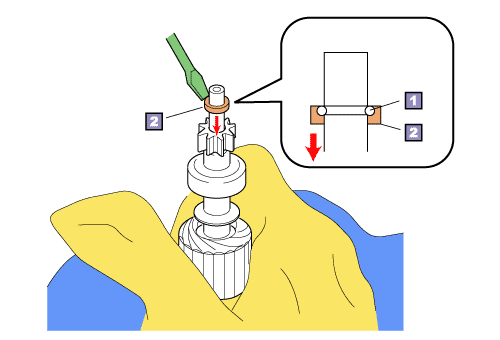

Slide the stop collar downward by tapping it with a flat-blade screwdriver.
(3)
Remove the snap ring.
(4)
Remove the stop collar and starter clutch from the armature shaft.
