Disassembly.

Remove Starter Brush Spring
Click on the underlined sentence.

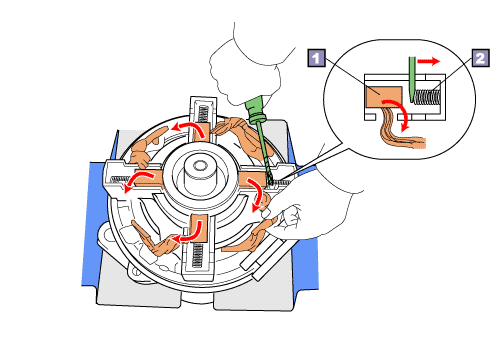

Brush
Brush spring

  (3) Remove the brush while compressing the spring with a flat-blade screwdriver, etc.
NOTICE:
•
 Tape the blade of the screwdriver before commencing work.
•
 Cover the brush holder with a cloth to prevent the brush spring from flying out.

(4) Remove the brush spring from the brush holder insulator.

(5) Remove the brush holder insulator.

(36)
