Disassembly.
Remove Starter Brush Spring
Click on the underlined sentence.

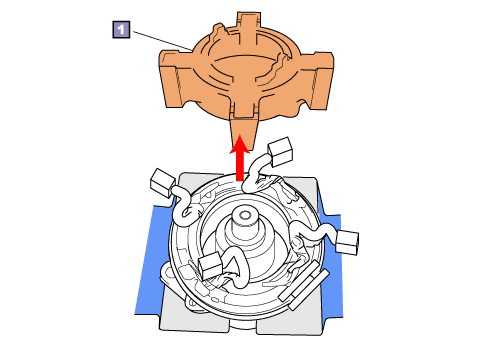

Brush holder insulator
(3)
Remove the brush while compressing the spring with a flat-blade screwdriver, etc.
(4)
Remove the brush spring from the brush holder insulator.
(5)
Remove the brush holder insulator.
(36/2)
