Installation

Install Steering Wheel
Click on the underlined sentence.
Steering wheel
1. Install steering wheel
(1) Align the matchmarks made prior to removal, then install the steering wheel.
CAUTION:

•

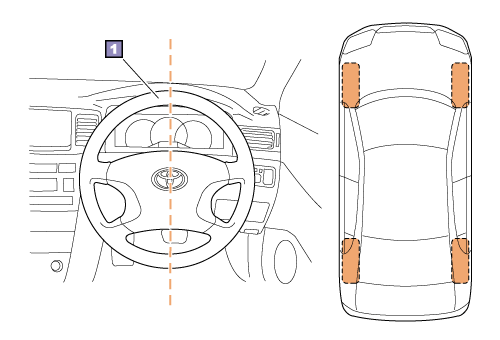

The installed position must be centred with the front wheels in the straight ahead position


•
 The spiral cable has a centre mark. Always ensure the spiral cable is centred before installing the steering wheel
REFERENCE:
•
 How to centre the spiral cable

(2) Hold the steering wheel by hand while tensioning the retaining nut.

(23/1)
