Installation
How to Position Centre of Spiral Cable
Click on the underlined sentence.
1.
Turn the spiral cable counter clockwise until resisstance is felt.
HINT:
The Spiral cable will only turn a maximum of 5 revolutions.
2.

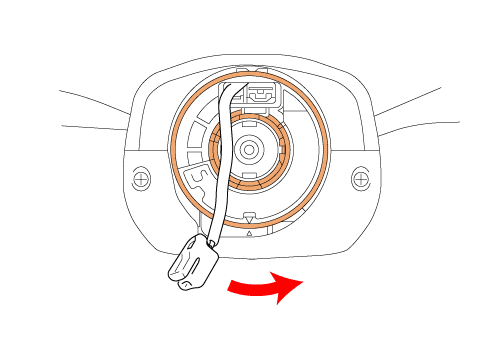

Turn the spiral cable back clockwise 2.5 turns from the position where resisstance was felt and align the centre mark as shown in the illustration.
(23/3)
