Inspect Headlight Circuit
Click on the underlined sentence.

2. Check light control switch
connector (connector No.C8)
  (1) Refer to the "ELECTRICAL WIRING ROUTING" pages in the EWD to confirm the position of the light control switch connector.

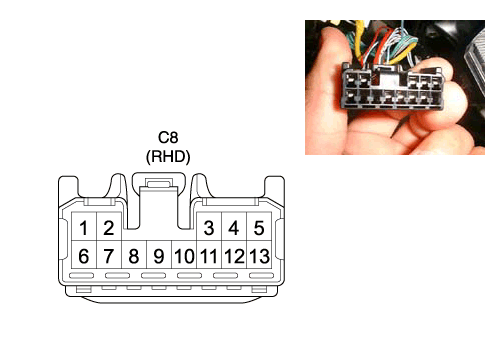

(2) Refer to the "CONNECTOR LIST" pages in the EWD to confirm the shape and pin numbers for the light control switch.
(3) Refer to the "SYSTEM CIRCUIT" pages in the EWD to confirm the wiring colours of the wire harness.
