Headlights 12

PRO TECHNICIAN

Inspection

Inspect Headlight Circuit

Click on the underlined sentence.

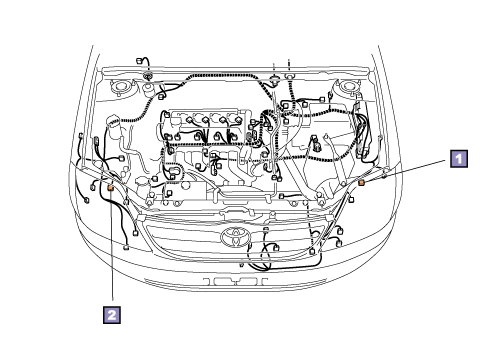

	Connector No.H1
	Connector No.H2

1.	Check headlight connector (connector No. H1/H2)
	(1)	Refer to the "ELECTRICAL WIRING ROUTING" pages in the EWD to confirm the position of headlight connector.
	(2)	Refer to the "CONNECTOR LIST" pages in the EWD to confirm the shape and pin numbers for the headlight connector.
	(3)	Refer to the "SYSTEM CIRCUIT" pages in the EWD to confirm the wiring colour of the wire harness.

(1/2)
