Headlights 12b

PRO TECHNICIAN

Inspection

Inspect Headlight Circuit

Click on the underlined sentence.

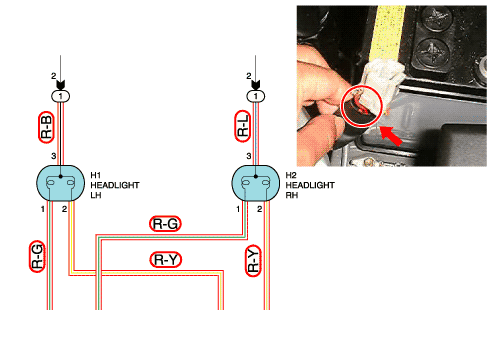

1.	Check headlight connector (connector No. H1/H2)
	(1)	Refer to the "ELECTRICAL WIRING ROUTING" pages in the EWD to confirm the position of headlight connector.
	(2)	Refer to the "CONNECTOR LIST" pages in the EWD to confirm the shape and pin numbers for the headlight connector.
	(3)	Refer to the "SYSTEM CIRCUIT" pages in the EWD to confirm the wiring colour of the wire harness.

HINT:
•	Check the connector on the vehicle harness side (wiring loom side)
•	Refer to the "HOW TO USE THIS MANUAL" section of the EWD.

(12/2)
