Introduction to using the EWD |
Parts |
 |

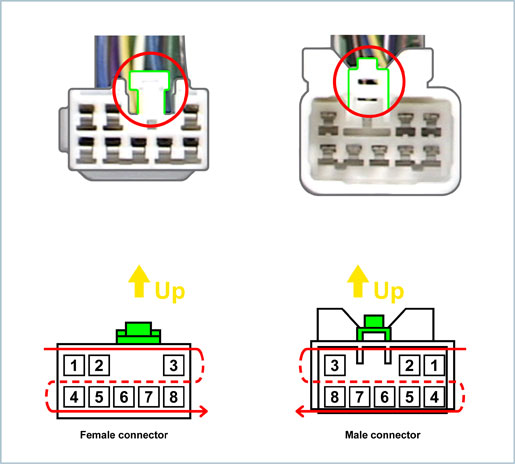

When reading the pin numbers, orientate the connector so the locking portion is at the top, and read the pins on the connection surface. The numbers are read from the upper left to the lower right for female connectors and from the upper right to the lower left for the male connector (mirror image of the female connector) as shown in the illustration. |
