Introduction to using the EWD |
Parts |
 |

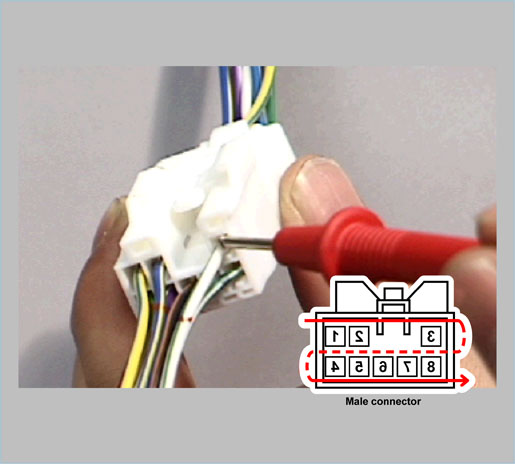

When using a tester to check the voltage, use a probe as shown in the figure to check the voltage. However, at this time the pin number is read from the back of the connector. Therefore, this is the reverse of when reading from the connecting surface, so be careful when reading the pin numbers. |
(12) | |
